Fabrication on Exhaust Arrangement for Main Engine (4 in Nos – PORT & STBD), Generator (2 in Nos – PORT & STBD), Exhaust Silencer (4 in Nos – PORT & STBD), & System Fittings

Vessel Name : KD SRI JOHOR

Work Routine : Perform corrective maintenance to fabricate a new exhaust arrangement for main engine, generator genset, exhaust silencer and system fitting.

The fabrication of the exhaust arrangement for the main engine, generator genset, exhaust silencer, and associated system fittings has been successfully completed for both the port and starboard sides, including the installation of thermal insulation.

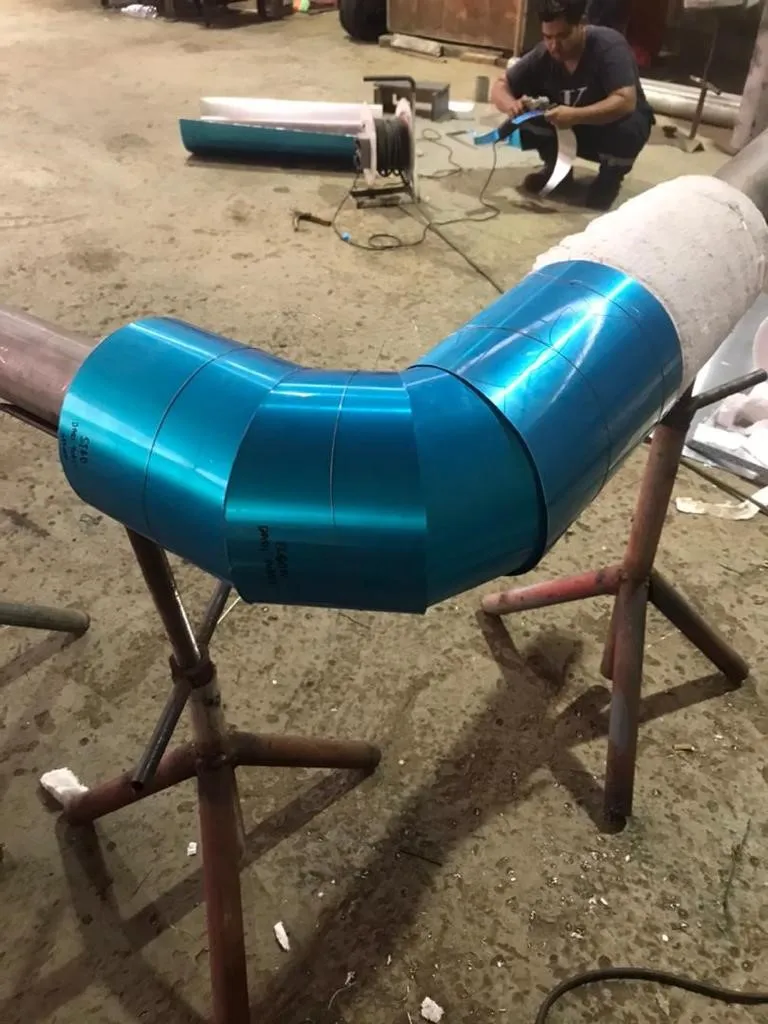

Figure 1: Thermal insulation on generator genset
Figure 2: Fabrication work on Exhaust Arrangement
Figure 3: Fabrication work progress exhaust silencer
Figure 4: View of fitting pipe work progress.

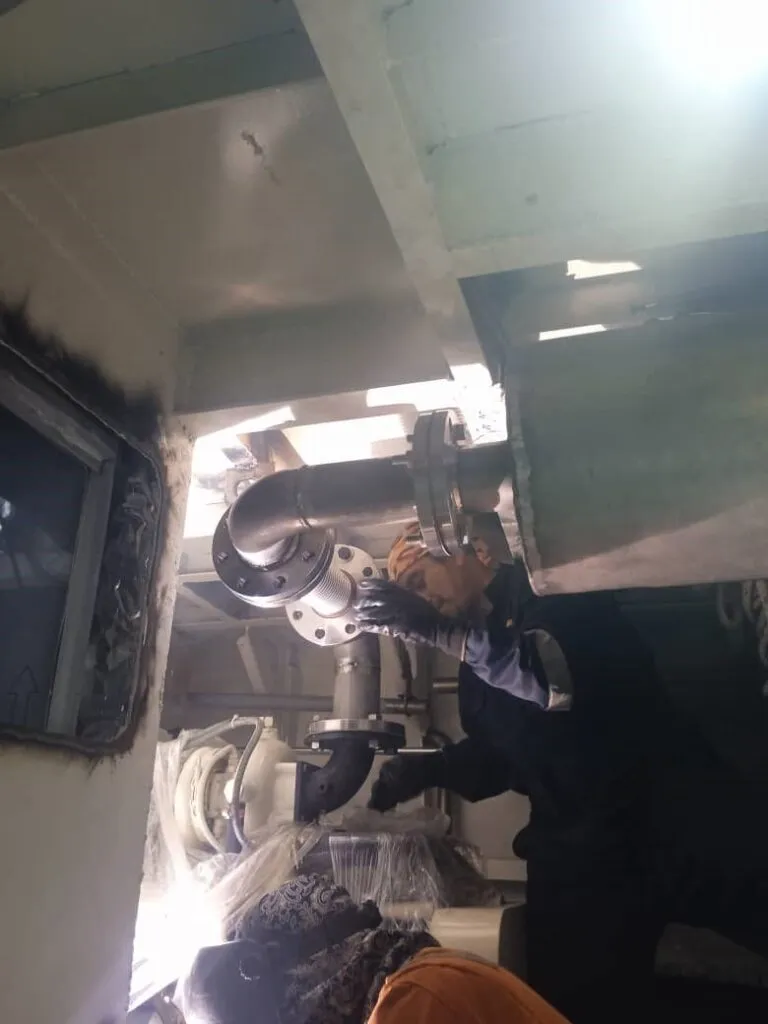

Figure 5: Exhaust pipe installation for generator work progress.
